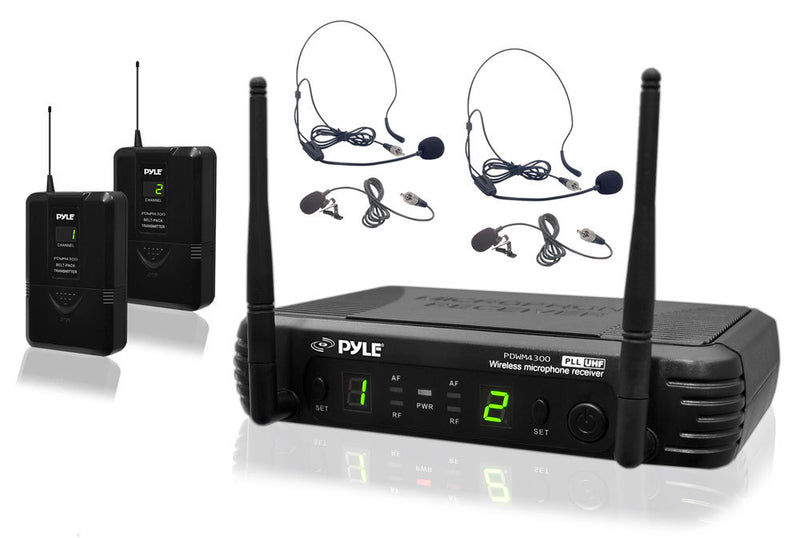

Pyle Microphone System with (2) Body-Pack Transmitters and (2) Lavalier Micophones
by Pyle
Sold out
Original price
$158.42
-
Original price
$158.42
Original price
$158.42
$158.42
-
$158.42
Current price
$158.42
Premier Series Professional UHF Microphone System with (2) Body-Pack Transmitters, (2) Headset & (2) Lavalier Microphones with Selectable Frequencies
LED Power Indicator & Channel Display
Operation Range: Up to 164 ft.
Audio Level Indicator for wireless system audio signal level
Independent & adjustable channel volume controls
RF Signal Indicator for transmitter signal strength
UHF Signal for wider range and less obstruction
Up to eight separate channels to choose from
1/4' audio output jack
XLR balanced output jack
AC/DC adapter power jack
Power Supply: 110/220V
Receiver Specifications
RF Frequency Range: 673-697.975 MHz
Image & Spurious Rejection: >70 dB
Receiving Sensitivity: -105 dB
Signal / Noise Ratio: -105dB
Border Upon Channel Rejection: > 70 dB
T.H.D.: < 1%
Audio Output Level: 0-300 mV
Power Requirements: 13-15V DC nominal 500 mA+
Dimensions 6.8' x 5.3' x 1.7'
Body-Pack Transmitter Specifications
Includes (2) wireless body-pack transmitters, headsets & lavaliers
RF Frequency Range: 673-697.975 MHz
RF Output: >10 dBm
Modulation Type: FM
Max Deviation: ± 40 KHz
Spurious Emission: > 55 dBc
Nominal Current Drain: < 40mA
Power Requirements: 2 x 1.5V AA (Not Included)
Dimensions: 9.25" x 1.9" x 1.9"
LED Power Indicator & Channel Display
Operation Range: Up to 164 ft.
Audio Level Indicator for wireless system audio signal level
Independent & adjustable channel volume controls
RF Signal Indicator for transmitter signal strength
UHF Signal for wider range and less obstruction
Up to eight separate channels to choose from
1/4' audio output jack
XLR balanced output jack
AC/DC adapter power jack
Power Supply: 110/220V
Receiver Specifications
RF Frequency Range: 673-697.975 MHz
Image & Spurious Rejection: >70 dB
Receiving Sensitivity: -105 dB
Signal / Noise Ratio: -105dB
Border Upon Channel Rejection: > 70 dB
T.H.D.: < 1%
Audio Output Level: 0-300 mV
Power Requirements: 13-15V DC nominal 500 mA+
Dimensions 6.8' x 5.3' x 1.7'
Body-Pack Transmitter Specifications
Includes (2) wireless body-pack transmitters, headsets & lavaliers
RF Frequency Range: 673-697.975 MHz
RF Output: >10 dBm
Modulation Type: FM
Max Deviation: ± 40 KHz
Spurious Emission: > 55 dBc
Nominal Current Drain: < 40mA
Power Requirements: 2 x 1.5V AA (Not Included)
Dimensions: 9.25" x 1.9" x 1.9"
